Cylindrical Dripper

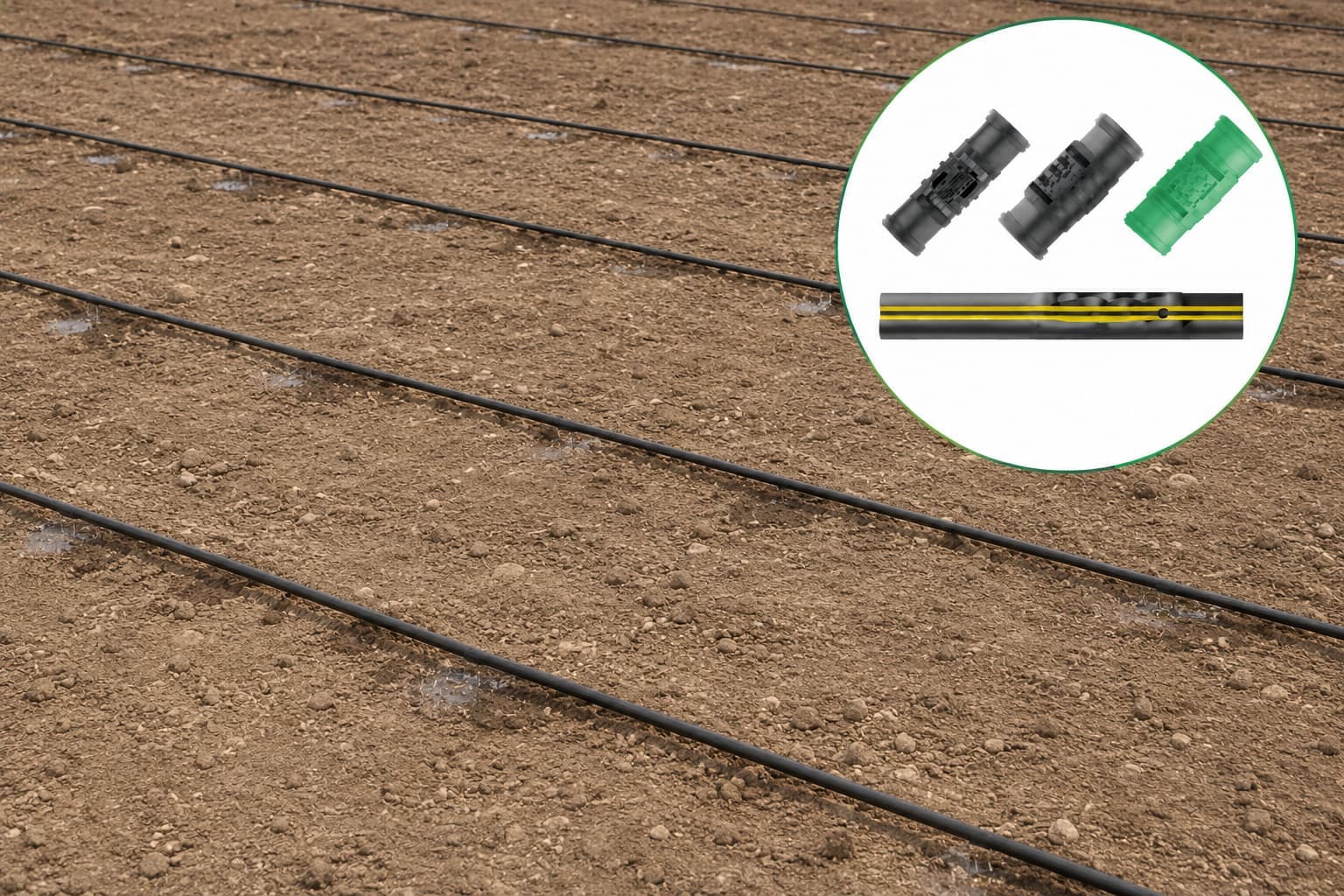

Dripline with Cylindrical Dripper
Advanced hydrodynamic design for superior clog resistance and uniform discharge across long runs.
- Highly Economical
- Finest Dripper
- Uniform & High Precision Discharge
- Unique Filtration Patch — Low Clogging
Cylindrical Drippers for Drip Irrigation
Innovative Cascade Labyrinth
Hydro-dynamically designed cascade tooth structure creates a double flow regime — central curving flow plus a turbulent cyclone — for continuous flushing of particles.
Laser Drilled Outlet Hole
Precision laser-drilled outlet gives a uniform, clear opening. Multiple outlets break vacuum and prevent sand suction.
No Environmental Effects & UV Stabilized
Engineered to perform season after season under harsh field conditions.
Minimum Filtration — 130 micron or less
Works reliably with basic filtration matched to your source water quality.
Hydrodynamic Through-Bore Design
Provides the least obstruction to flow — helping to achieve longer running lengths across the field.
Technical Details
Specification & application guide.
| Filtration | 130 micron or less (depends on source water quality) |
| Discharges | 1.1*, 2.2, 4.0, 8.0 LPH at 1 kg/cm² |
| Dripper Spacing | 30, 40, 50*, 60*, 75*, 90*, 100* cm |
| Diameter | 12, 16, 20 mm |
| Wall Thickness | 0.4 mm & 0.5 mm |
| Max Running Length | 108 m for 1 LPH @ 40 cm dripper spacing |
- Closely spaced row crops — sugarcane, cotton, banana, vegetables, spices, etc.
- Greenhouses and nurseries.
- Widely spaced horticulture plants — mango, citrus, guava, etc.
- Suitable for multi-seasonal applications.
