Precision Drippers
DT-J Lock and PC series drippers — engineered for uniform discharge and long-lasting performance.

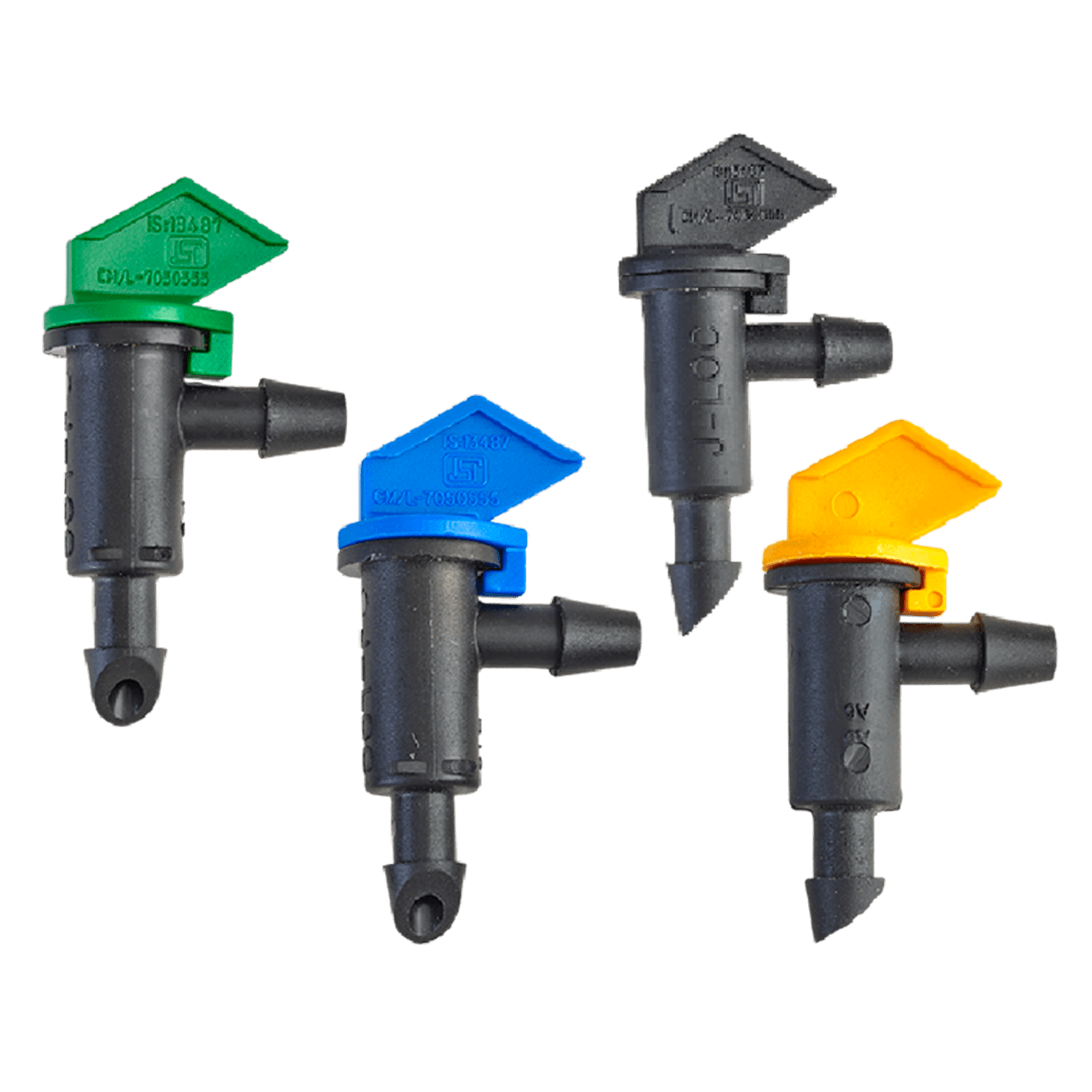

DT–J Lock Drippers
Unique design facilitates horizontal or vertical installation of the dripper.
Latching arrangement
Locked components stay assembled even under pressure fluctuation.
Unique design facilitates horizontal or vertical installation of the dripper.
Color-coded top for different discharge
Highly economical
Take-apart construction for easy cleaning
Components do not snap-off under pressure fluctuation due to latching arrangement
Conforming to IS 13487 and ISO 9260
No environmental effects & UV stabilized
Minimum filtration required: 100 micron

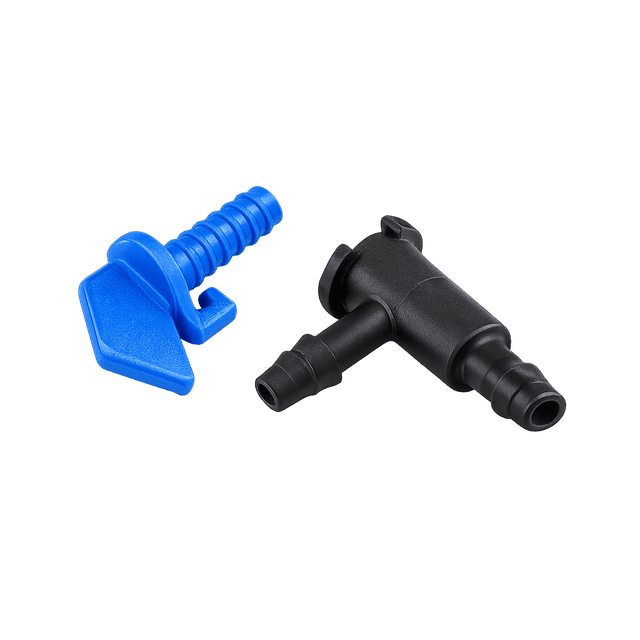

Extended barbed outlet
Ensures water drops at the desired point.
Operating Specifications
Filtration recommendation 130 micron or less. Actual filtration quality is decided by source water quality.
Applications

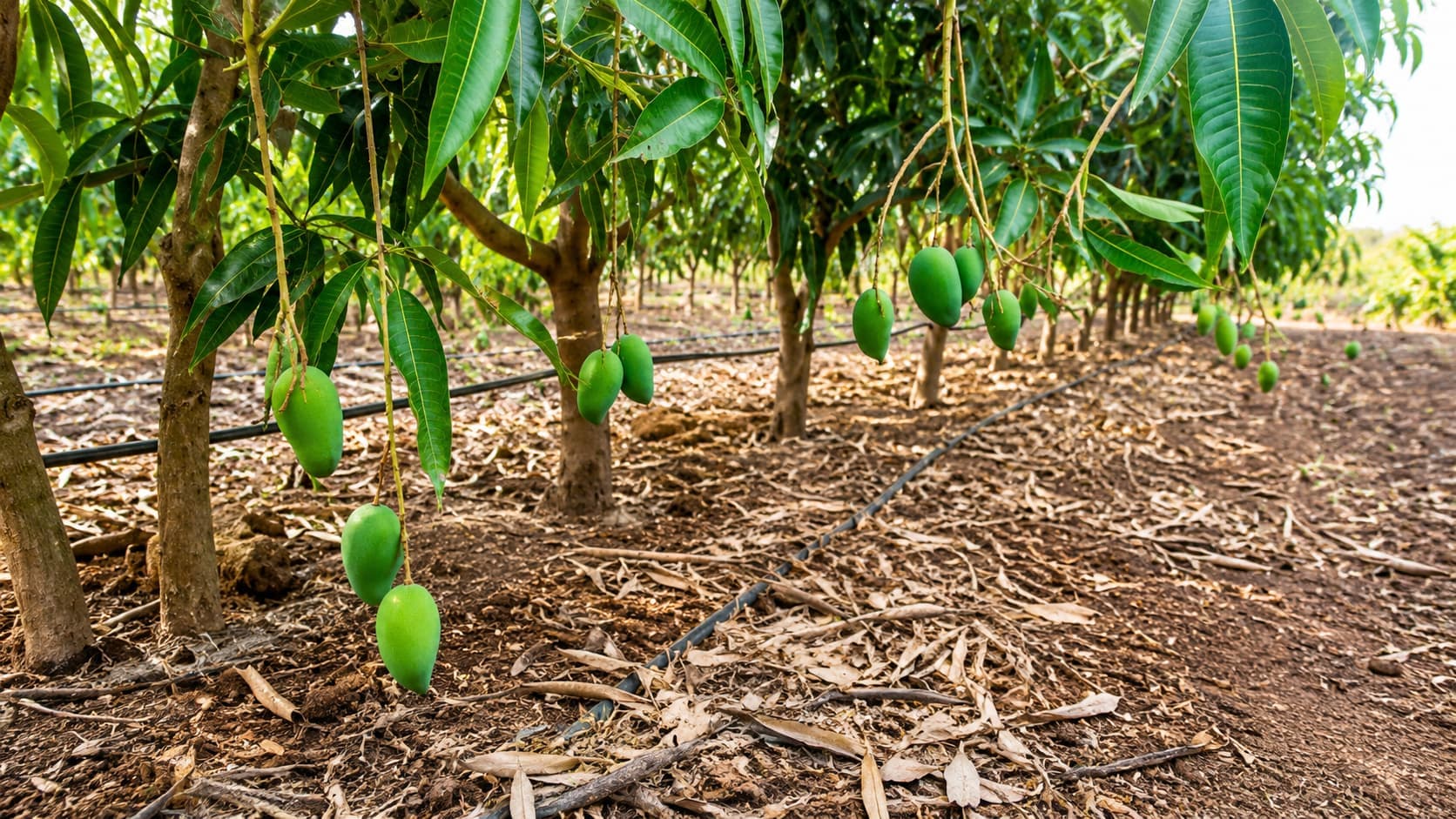

- Recommended for fruit orchards requiring multiple drippers.
- Drippers around the trunk of the tree to cover the widespread root zone.
PC Drippers
Take Apart, Self-Cleaning Pressure Compensating (SCPC) Online Emitter

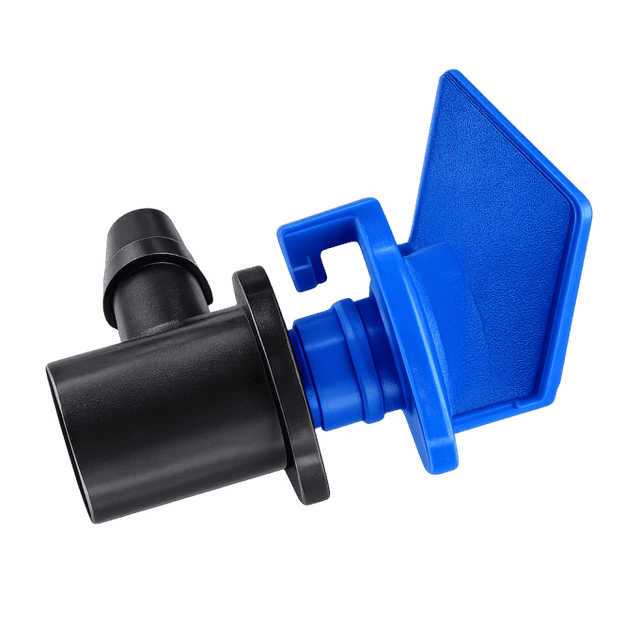

Take-apart feature allows easy opening and cleaning of the emitter.
Clog Resistant, Wide Labyrinth
Strong turbulent flow in the labyrinth helps for continual flushing and cleaning.
Precision Pressure Compensation
High-quality injection moulded liquid silicone diaphragm ensures precision in pressure compensation and helps maintain high discharge uniformity.
Barbed Inlet with Narrow Inlet Filter
Barbed inlet suitable to connect directly on 4 mm extension tube or polytube. Cross-shaped inlet filter prevents most impurities from entering.
Extended Outlet
For connection of 4 mm ID extension tubing for right placement of water with multi-outlet connectors.
Wide Pressure Compensating Range
Pressure regulation range 0.8–3 kg/cm² (11.38 to 42.66 psi).
Optional Anti-bug Cap
Prevents entry of ants and bugs inside the emitter.
Color Coded Cap
Color coded cap facilitates easy identification of emitter flow rate.
Specifications

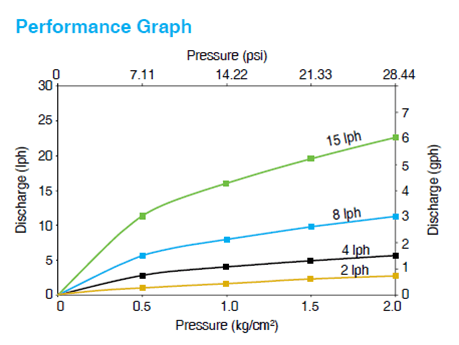

Performance Graph
Applications
- Recommended for open field applications like orchards, fruit crops, vegetables, etc.
- Suitable for nurseries, pot irrigation & greenhouse irrigation.
- Recommended where section size is large and longer lateral length of run is required.
- Recommended for undulating terrain & steep slopes.
- Recommended in problematic water conditions where emitter cleaning is required.
Operating Specifications
Maintain the operating pressure within the pressure regulating range (0.8–3 kg/cm²).
Always use the Turbo Key Spanner to open and close the dripper. Close the dripper properly.
130 micron or less. Actual filtration quality is decided by source water quality.
Please refer to our Maintenance Manual for more details.
Ordering Specifications
| Parameter | Value |
|---|---|
| Pressure regulation range | 0.8 – 3 kg/cm² (11.38 – 42.66 psi) |
| Filtration | 130 micron or less |
| Discharge options (DT–J Lock) | 2 / 4 / 8 / 15 LPH |
| Construction | Take-apart, self-cleaning |
| Standards | IS 13487, ISO 9260 |
