01
For large or long plots
Laser Spray Marathon excels — its high maximum permissible running length gives uniform discharge over long distances. Saves main lines, sub-mains and fittings. The larger the plot, the bigger the savings.
Models
One Laser Spray, different avatars for every farmer.
Driptech is a pioneer and global leader in spray-irrigation technology. Through continuous research, development and direct feedback from farmers, we've built a family of Laser Spray (Rain Pipe / Rain Hose) models — each tuned for a different agricultural profile.
The Range
Seven models. One promise.
We are pleased to present our latest leading model. Please look forward to more to come in the coming years.
Mini01Laser Spray 20 MM
- Discharge
- 45 LPH/m
- Wetting
- 3 m
- Run length
- 50 m
- Wall
- 0.2 MM
Gold02Laser Spray Gold — 20 MM
- Discharge
- 45 LPH/m
- Wetting
- 3 m
- Run length
- 50 m
- Wall
- 0.4 MM
Standard03Laser Spray 32 MM
- Discharge
- 135 LPH/m
- Wetting
- 7 m
- Run length
- 50 m
- Wall
- 0.3 MM
Gold04Laser Spray Gold — 32 MM
- Discharge
- 135 LPH/m
- Wetting
- 7 m
- Run length
- 50 m
- Wall
- 0.4 MM
Standard05Laser Spray 40 MM
- Discharge
- 135 LPH/m
- Wetting
- 7 m
- Run length
- 60 m
- Wall
- 0.3 MM
Marathon06Laser Spray Marathon 40 MM
- Discharge
- 70 LPH/m
- Wetting
- 6 m
- Run length
- 100 m
- Wall
- 0.3 MM
Jumbo07Laser Spray Jumbo — 63 MM
- Discharge
- 205 LPH/m
- Wetting
- 7 m
- Run length
- 100 m
- Wall
- 0.3 MM
Specifications at a glance
The full Laser Spray spec sheet.
| Model | Wall | Roll Length | Discharge | Max Run Length* | Wetting Distance* | Pressure | Qty Required Per Acre |
|---|---|---|---|---|---|---|---|
| Laser Spray 20 MM | 0.2 MM | 200 / 700 m | 45 LPH/m | 50 m | 3 m | 0.7 kg/cm² | 1400 m |
| Laser Spray Gold — 20 MM | 0.4 MM | 100 m | 45 LPH/m | 50 m | 3 m | 0.7 kg/cm² | 1400 m |
| Laser Spray 32 MM | 0.3 MM | 100 / 600 m | 135 LPH/m | 50 m | 7 m | 0.7 kg/cm² | 600 m |
| Laser Spray Gold — 32 MM | 0.4 MM | 100 m | 135 LPH/m | 50 m | 7 m | 0.7 kg/cm² | 600 m |
| Laser Spray 40 MM | 0.3 MM | 100 / 500 m | 135 LPH/m | 60 m | 7 m | 0.7 kg/cm² | 600 m |
| Laser Spray Marathon 40 MM | 0.3 MM | 100 / 500 m | 70 LPH/m | 100 m | 6 m | 0.7 kg/cm² | 700 m |
| Laser Spray Jumbo — 63 MM | 0.3 MM | 100 m | 205 LPH/m | 100 m | 7 m | 0.7 kg/cm² | 100 m |

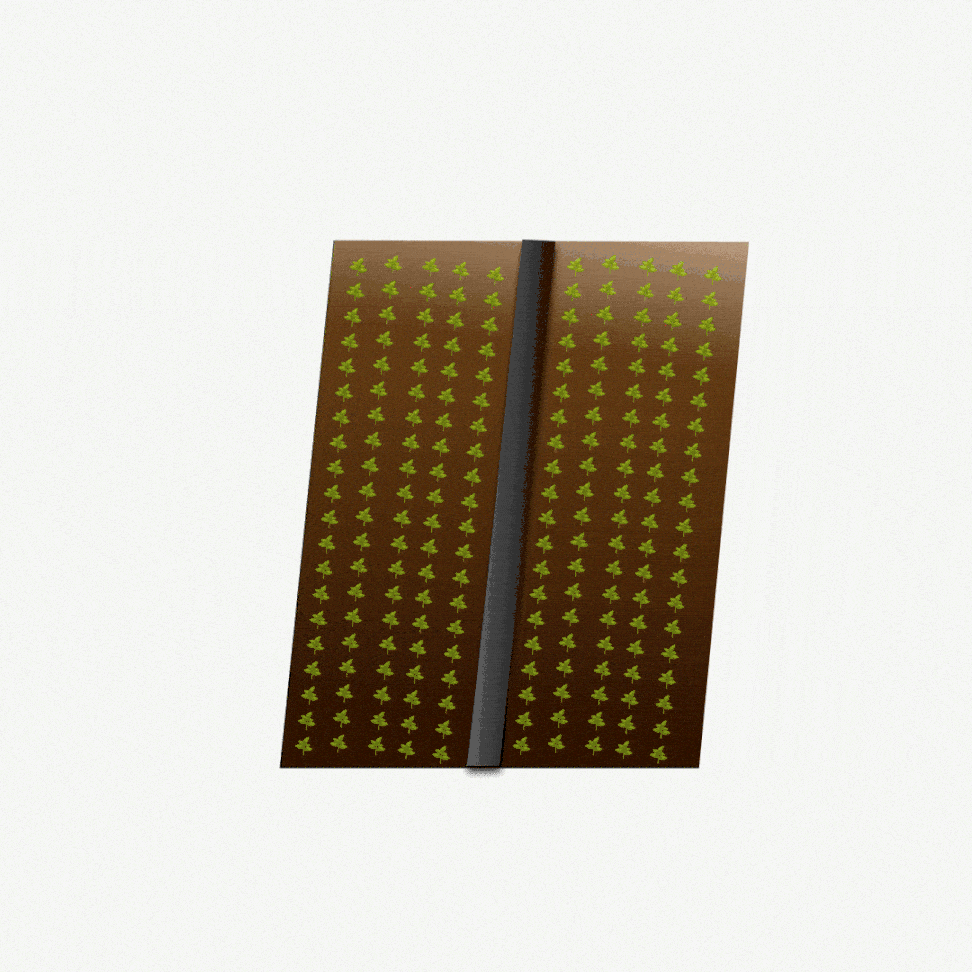

* See the explanation diagram below.
How to choose
Pick the model that matches your field.
All Laser Spray models cover most agricultural applications — but each one shines under specific conditions.
02
Fewer / longer valve operations
Choose Marathon — it covers a larger area at a slower irrigation rate, so valves cycle less often and intervals can be stretched.
03
Higher discharge & quick irrigation
Pick the 32 MM or 40 MM models — they deliver the high LPH per meter of spray pipe for fast, heavy watering.
04
Beds, compact areas & greenhouses
Laser Spray 20 MM is ideal — its narrower wetting distance is perfect for beds, inter-cultivation, crop cooling and polyhouse / greenhouse applications.
Highlights
Every model shares the Laser Spray DNA.
Low Pressure
0.7 kg/cm²
Across every model — works with small pumps.
Rain-like Mist
Fine droplets
Doesn't damage tender flowers or fruits.
Run Length
Up to 100 m
Wall Thickness
0.2 – 0.4 MM
Gold variants offer extra durability.
Not sure which model suits your field?
Tell us your crop, plot size and water source — we'll recommend the perfect Laser Spray model for you.
