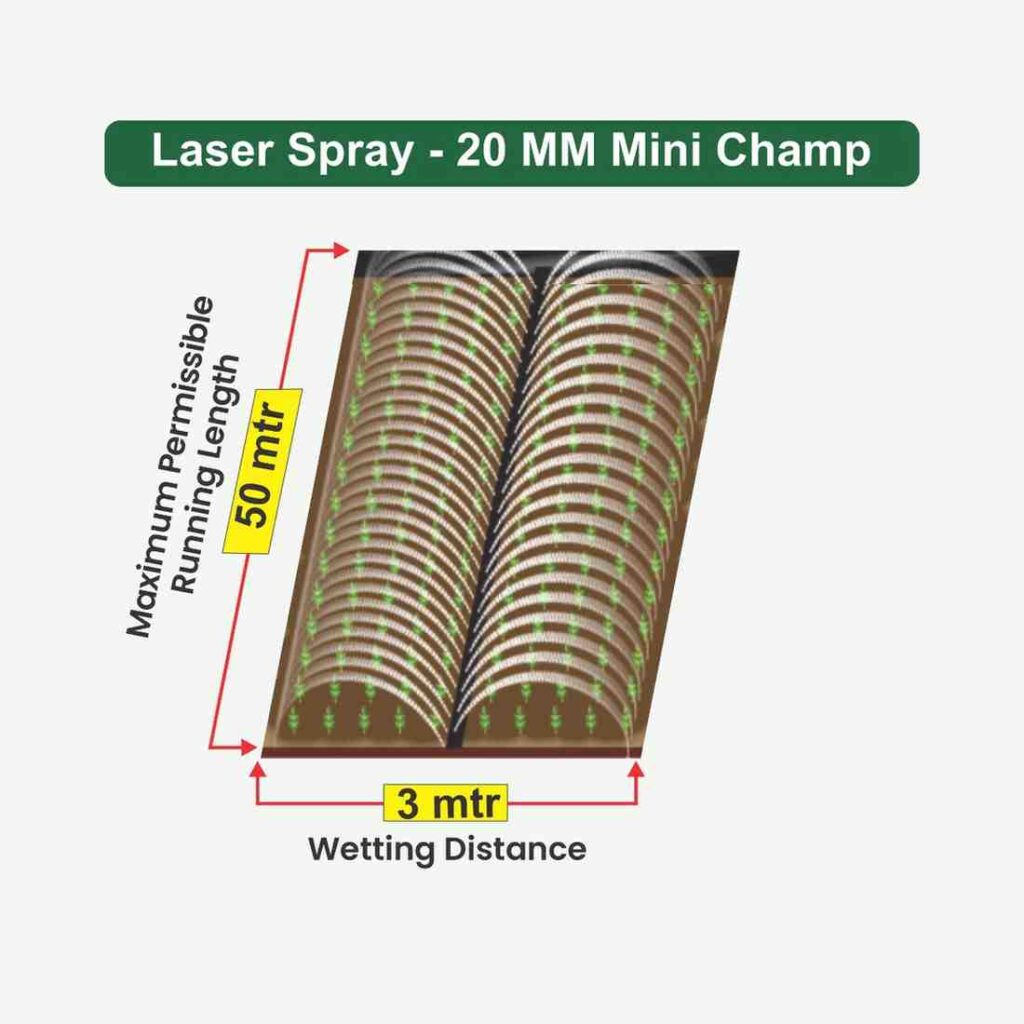

Smaller diameter, yet a Maximum Permissible Running Length comparable to standard models — thanks to a unique design.
Mini Series
Rain Pipe 20 MM Mini
Compact in diameter. Mighty in coverage.Apart from regular fields built for beds,inter cropping ,Crop cooling,etc.
- Discharge
- 45 LPH/m
- Run length
- 50 m
Working pressure
0.7 kg/cm²
Specifications
Engineered numbers, field-tested results.
Precision-engineered for low-pressure, high-uniformity spray irrigation across Indian farm conditions.
Diameter
20 mm
Wall Thickness
0.2 mm (8 Mil)
Working Pressure
0.7 kg/cm²
Max Running Length
50 m
Wetting Distance
3 m
Pipe Spacing
3 m
Discharge
45 LPH/m
Roll Length
200 & 700 m
Required / Acre
1400 m
Why this model
What makes the Mini 20 mm different.
02
Fine, rain-like mist — perfect for tender crops.
03
Low working pressure (0.7 kg/cm²) — runs on small pumps.
Ideal Applications
Apart from regular fields, this model is ideal for:
- Cultivation on bunds
- Inter cultivation
- Compact plot
- Greenhouse
- Crop cooling cum irrigation
Buy Our Product

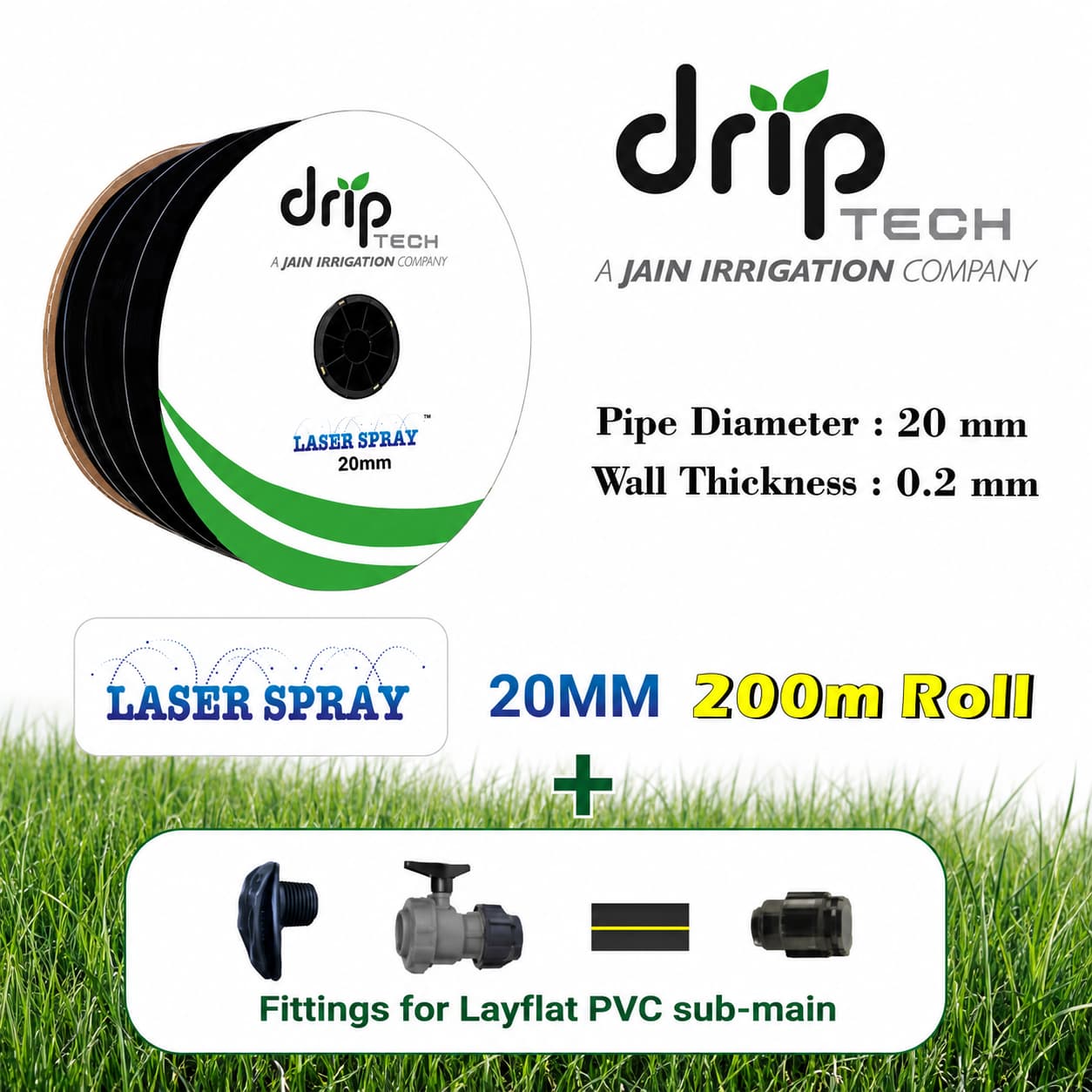

Get the Laser Spray 20 MM Mini — delivered to your farm.
Available on leading marketplaces, or order directly from Driptech.
